## Important formulae for solving numericals of elasticity :

(i) Stress = $\frac{Force}{area}$

(ii) Strain = $\frac{Change\,\,in\,\,configuration}{Original\,\,configuration}$

(iii) Longitudinal strain = $\frac{Change\,\,in\,\,length}{Original\,\,length}$

(iv) Volumetric strain = $\frac{Change\,\,in\,\,volume}{Original\,\,volume}$

(v) Modulus of elasticity (E) = $\frac{Stress}{Strain}$

(vi) Young’s modulus of elasticity, Y = $\frac{Fl}{eA}$

(vii) Elastic potential energy stored, E = $\frac{1}{2}$ .F .e

(viii) Work done to stretch the wire = Energy stored

(ix) Energy density, ${{\rho }_{E}}$ = $\frac{1}{2}$ stress × strain

(x) Bulk Modulus, K = $\frac{Normal\,\,stress}{Volumetric\,\,strain}$

(xi) Modulus of rigidity ($\eta $) = $\frac{Tangential\,\,stress}{Shear\,\,strain}$

(xii) Poisson’s ratio ($\sigma $) = $\frac{Lateral\,\,strain}{Longitudinal\,\,strain}$

(xiii) Shearing strength = $\frac{Force}{area}$

(xiv) Density, $\rho $ = $\frac{mass}{volume}$ = $\frac{m}{A.l}$

*1. What force is required to stretch a steel wire of cross sectional area 1 cm*^{2}* to double its length?*

*[Y*_{Steel}* = 2**×**10*^{11}* N/m*^{ }*]*

Solution:

Force, F = ?

Area of cross-section, A = 1 cm^{2}

A = (1×10^{-2})^{2} m^{2} = 1×10^{-4} m^{2}

Let initial length, *l*_{1} = *l*

Then final length, *l*_{2} = 2*l*

Elongation, e = *l*_{2} – *l*_{1} = 2*l* – *l* = *l*

$\therefore $ Elongation, e = *l*

Y_{Steel} = 2×10^{11} N/m^{2}

We know,

Young’s modulus of elasticity,

Y = $\frac{Fl}{eA}$

Or, F = $\frac{YAe}{l}$

Or, F = $\frac{2\times {{10}^{11}}\times l\times 1\times {{10}^{-4}}}{l}$

$\therefore $ F = 2×10^{7} N

*2. Calculate the work done in stretching a steel wire 100 cm in length and of cross sectional area 0.030 cm*^{2}* when a load of 100 N is slowly applied before the elastic limit is reached. ***[Y**_{Steel}** = 2****×****10**^{11}** N/m**^{ }**]**

Solution:

Here,

Work done, W = ?

Length of wire, *l* = 100 cm = 1m

Cross-sectional area, A = 0.03 cm^{2 }

^{ }A^{ }= 0.03× (1×10^{–2})^{2} m^{2}

A = 0.03×10^{–4} m^{2}

Force, F = 100 N

Y_{Steel} = 2×10^{11} Nm^{–2 }

We know,

Young’s modulus of elasticity

Y = $\frac{Fl}{eA}$

Or, e = $\frac{Fl}{YA}$

Or, e = $\frac{100\times 1}{2\times {{10}^{11}}\times 0.03\times {{10}^{-4}}}$

Elongation, e = $\frac{1}{6000}$ m

Now,

Work done (W) = Energy stored (E)

Or, W = $\frac{1}{2}$ .F .e

Or, W = $\frac{1}{2}$ × 100 × $\frac{1}{6000}$

$\therefore $ W = 8.33×10^{-3} J

*3. Find the work done in stretching a wire of cross sectional area 10*^{–2}* cm*^{2}* and 2m long through 0.1 mm, If Y for the material of wire is 2**×**10*^{11}* Nm*^{–2}*.*

Solution:

Here,

Work done, W = ?

Cross-sectional area, A = 10^{–2} cm^{2 }

A^{ }= 10^{–2} × (1×10^{–2})^{2} m^{2}

A = 1×10^{–6} m^{2}

Length of wire, *l* = 2 m

Elongation, e = 0.1 mm = 0.1×10^{–3} m

Y_{Steel} = 2×10^{11} Nm^{–2 }

We know,

Young’s modulus of elasticity

Y = $\frac{Fl}{eA}$

F = $\frac{YeA}{l}$

F = $\frac{2\times {{10}^{11}}\times 0.1\times {{10}^{-3}}\times 1\times {{10}^{-6}}}{2}$

F = 10 N

Now, work done, (W) = Energy stored (E)

W = $\frac{1}{2}$ .F .e

W = $\frac{1}{2}$ × 10 × 0.1×10^{–3}

$\therefore $ W = 5×10^{-4} J

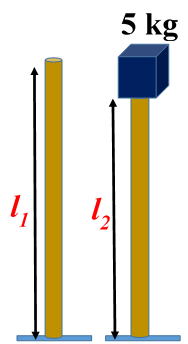

*4. A vertical brass rod of circular section is loaded by placing of 5 kg weight on top of it. If its length is 50 cm and radius of cross section is 1 cm, find the contraction of the rod and the energy stored in it. *

*[Y*_{Brass}* = 3.5**×**10*^{10}* Nm*^{–2}*]*

Solution:

Here,

Mass on top, m = 5 kg

Length of rod, *l* = 50 cm = 0.5 m

Radius, r = 1 cm = 1×10^{–2 }m* *

(i) Contraction, e (or $\Delta l$* or l** _{1}*–

*l*

*) = ?*

_{1}(ii) Energy stored, E = ?

Y_{Brass} = 3.5×10^{10} Nm^{–2 }

We know,

Young’s modulus of elasticity

Y = $\frac{Fl}{eA}$

e = $\frac{Fl}{YA}$

e = $\frac{mgl}{Y\times \pi {{r}^{2}}}$

e = $\frac{5\times 10\times 0.5}{3.5\times {{10}^{10}}\times \pi {{(1\times {{10}^{-2}})}^{2}}}$

$\therefore $ Contraction, e = 2.27×10^{–6} m

Now,

Energy stored, E = $\frac{1}{2}$ .F .e

E = $\frac{1}{2}$ × mg × e

E = $\frac{1}{2}$ × 5 × 10 × 2.27×10^{–6}

$\therefore $ E = 5.68×10^{-5} J

* 5. Calculate the work done in stretching a steel wire 100 cm in length and of cross sectional area 0.03 cm*^{2}* when a load of 100 N is slowly applied without the elastic limit being reached. [Y*_{Steel}* = 2**×**10*^{11}* N/m*^{ }*]*

Solution:

Work done, W = ?

Length of wire, *l* = 100 cm = 1m

Cross-sectional area, A = 0.03 cm^{2 }

A^{ }= 0.03× (1×10^{–2})^{2} m^{2}

A = 0.03×10^{–4} m^{2}

Force, F = 100 N

Y_{Steel} = 2×10^{11} Nm^{–2 }

We know,

Young’s modulus of elasticity

Y = $\frac{Fl}{eA}$

e = $\frac{Fl}{YA}$

e = $\frac{100\times 1}{2\times {{10}^{11}}\times 0.03\times {{10}^{-4}}}$

Elongation, e = $\frac{1}{6000}$ m

Now, work done (W) = Energy stored (E)

W = $\frac{1}{2}$ .F .e

W = $\frac{1}{2}$ × 100 × $\frac{1}{6000}$

$\therefore $ W = 8.33×10^{-3} J

*6. A uniform steel wire of density 8000 Kgm*^{–3}* weight 20 g and is 2.5 m long. It lengthens by 1 mm when trenched by a force of 80 N. Calculate the value of the Young’s modulus of steel and the energy stored in the wire.*

Solution:

Here,

Density of steel wire, $\rho $ = 8000 kgm^{-3}

Mass of wire, m = 20g = 20×10^{-3}kg

Length of wire* l *= 2.5m

Elongation, e = 1mm = 1×10^{-3}m

Force, F = 80 N

Young’s modulus of steel, Y = ?

Energy stored in the wire, E = ?

We have,

Young’s modulus of elasticity,

Y = $\frac{Fl}{eA}$ …….(i)

Again,

Density, $\rho $ = $\frac{mass}{volume}$ = $\frac{m}{A.l}$

A = $\frac{m}{\rho l}$ = $\frac{20\times {{10}^{-3}}}{8000\times 2.5}$

A = 1×10^{-6} m^{2}

From equation (i),

Y = $\frac{Fl}{eA}$= $\frac{80\times 2.5}{1\times {{10}^{-3}}\times 1\times {{10}^{-6}}}$

$\therefore $ Y = 2×10^{11} Nm^{–2}

Now,

Energy stored in the stretched wire,

E = $\frac{1}{2}$ .F .e

Or, E = $\frac{1}{2}$ × 80 × 1×10^{-3}

$\therefore $ E = 40×10^{-3} J

*7. A uniform Steel wire of density 7800 Kgm*^{–3}* weights 16 gm and is 250 cm long. It lengthens by 1.2 mm when is stretched by a force of 80 N. Calculate the Young’s modulus and energy stored in the wire.*

Solution:

Here,

Density of steel wire, $\rho $ = 7800 kgm^{-3}

Mass of wire, m = 16 g = 16×10^{-3 }kg

Length of wire* l *= 250 cm = 2.5 m

Elongation, e = 1.2 mm = 1.2×10^{-3 }m

Force, F = 80 N

Young’s modulus of steel, Y = ?

Energy stored in the wire, E = ?

We have,

Young’s modulus of elasticity,

Y = $\frac{Fl}{eA}$ …….(i)

Again,

Density, $\rho $ = $\frac{mass}{volume}$ = $\frac{m}{A.l}$

A = $\frac{m}{\rho l}$

From equation (i),

Y = $\frac{Fl}{e}$× $\frac{\rho l}{m}$

Or, Y = $\frac{80\times 2.5}{1.2\times {{10}^{-3}}}$× $\frac{7800\times 2.5}{16\times {{10}^{-3}}}$

$\therefore $ Y = 2.03×10^{11} Nm^{–2}

Now,

Energy stored in the stretched wire,

E = $\frac{1}{2}$ .F .e

Or, E = $\frac{1}{2}$ × 80 × 1.2×10^{-3}

$\therefore $ E = 4.8×10^{-2} J

*8. A steel wire of density 8000 Kgm*^{–3}* weights 24 g and is 250 cm long. It lengthens by 1.2 mm when stretched by a force of 80 N. Calculate the Young’s modulus of Steel and the energy stored in the wire.*

Solution:

Here,

Density of steel wire, $\rho $ = 8000 kgm^{-3}

Mass of wire, m = 24 g = 24×10^{-3}kg

Length of wire* l *= 250 cm = 2.5m

Elongation, e = 1.2 mm = 1.2×10^{-3}m

Force, F = 80 N

Young’s modulus of steel, Y = ?

Energy stored in the wire, E = ?

We have,

Young’s modulus of elasticity,

Y = $\frac{Fl}{eA}$ …….(i)

Again,

Density, $\rho $ = $\frac{mass}{volume}$ = $\frac{m}{A.l}$

A = $\frac{m}{\rho l}$

From equation (i),

Y = $\frac{Fl}{e}$× $\frac{\rho l}{m}$

Or, Y = $\frac{80\times 2.5}{1.2\times {{10}^{-3}}}$× $\frac{8000\times 2.5}{24\times {{10}^{-3}}}$

$\therefore $ Y = 1.389×10^{11} Nm^{–2}

Now,

Energy stored in the stretched wire,

E = $\frac{1}{2}$ .F .e

Or, E = $\frac{1}{2}$ × 80 × 1.2×10^{-3}

$\therefore $ E = 4.8×10^{-2} J

*9. A uniform steel wire of density 7800 Kgm*^{–3}* weighs 16 gram and is 250 cm. It lengthens by 1.2 mm when a load of 8 kg is applied. Calculate the value of Young’s modulus for the steel and the energy stored in the wire.*

Solution:

Here,

Density of steel wire, $\rho $ = 7800 kgm^{-3}

Mass of wire, m = 16 g = 16×10^{-3 }kg

Length of wire* l *= 250 cm = 2.5 m

Elongation, e = 1.2 mm = 1.2×10^{-3 }m

Hanging mass, M = 8 Kg

Young’s modulus of steel, Y = ?

Energy stored in the wire, E = ?

We have,

Young’s modulus of elasticity,

Y = $\frac{Fl}{eA}$

Y = $\frac{Mg\times l}{eA}$ …….(i) [$\because $ F = Mg]

Again,

Density, $\rho $ = $\frac{mass}{volume}$ = $\frac{m}{A.l}$

A = $\frac{m}{\rho l}$

From equation (i),

Y = $\frac{Fl}{e}$× $\frac{\rho l}{m}$

Or, Y = $\frac{8\times 10\times 2.5}{1.2\times {{10}^{-3}}}$× $\frac{7800\times 2.5}{16\times {{10}^{-3}}}$

$\therefore $ Y = 2.03×10^{11} Nm^{–2}

Now,

Energy stored in the stretched wire,

E = $\frac{1}{2}$ .F .e

Or, E = $\frac{1}{2}$ × 80 × 1.2×10^{-3}

$\therefore $ E = 4.8×10^{-2} J

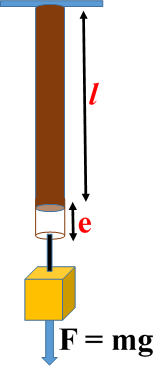

*10. A wire of length 2.5 m and area of cross section 1**×**10*^{–6}* m*^{2}* has a mass of 15 kg hanging on it. What is the extension produced? How much is the energy stored in the standard wire if Young’s modulus of wire is 2**×**10*^{11}* Nm*^{–2}*.*

Solution:

Here,

Length of wire* l *= 2.5m

Area of cross-section, A = 1×10^{–6} m^{2}

Hanging mass, m = 15 kg

Elongation, e = ?

Energy stored in the wire, E = ?

Young’s modulus of steel, Y = 2×10^{11} Nm^{–2}.

We have,

Young’s modulus of elasticity,

Y = $\frac{Fl}{eA}$

e = $\frac{Fl}{YA}$ [here, F = mg]

e = $\frac{15\times 10\times 2.5}{2\times {{10}^{11}}\times 1\times {{10}^{-6}}}$

e = 1.875 ×10^{-3} m

Again,

Energy stored in the stretched wire,

E = $\frac{1}{2}$ .F .e

Or, E = $\frac{1}{2}$ × mg × e

Or, E = $\frac{1}{2}$ × 15×10 ×1.875 ×10^{-3}

$\therefore $ E = 0.141 J

*11. A steel cable with cross sectional area 3 cm*^{2}* has an elastic limit of 2.40**×**10*^{8}* pa. Find the maximum upward acceleration that can be given a 1200 kg elevator supported by the cable if the stress does not exceed one third of the elastic limit.*

Solution:

Here,

Cross-sectional area, A = 3 cm^{2}

Or, A = 3×(1×10^{–2})^{2}

Or, A = 3×10^{–4} m^{2}

Elastic limit = 2.4×10^{8} pa (i.e. Nm^{–2 })

Maximum upward acceleration, a_{max }= ?

Mass of elevator, m = 1200 kg

Maximum stress = $\frac{1}{3}$ of elastic limit

Or, $\frac{Force\,\,(ma{{x}^{m}})}{area}$ = $\frac{1}{3}$× elastic limit

Or, $\frac{m\times {{a}_{max}}}{A}$ = $\frac{1}{3}$× elastic limit

Or, a_{max }= $\frac{1}{3}$× $\frac{A}{m}$× elastic limit

Or, a_{max }= $\frac{1}{3}$× $\frac{3\times {{10}^{-4}}}{1200}$×2.4×10^{8 }

$\therefore $ a_{max }= 20 ms^{-2}

*12. How much force is required to punch a hole 1 cm in diameter in a steel sheet 5mm thick whose shearing strength is 2.76**×**10*^{8}* Nm*^{–2}*.*

Solution:

Here,

Force, F = ?

Diameter of hole, d = 1 cm

$\therefore $ Radius of hole, r = 0.5 cm

r = 0.5 × 10^{–2} m

Thickness of steel sheet, t = 5 mm

t = 5 × 10^{–3} m

Shearing strength = 2.76 ×10^{8 }Nm^{–2}

We have,

Shearing strength = $\frac{Force}{area}$

Or, Shearing strength = $\frac{F}{C\times t}$ here, C is circumference.

Or, F = Shearing strength × C × t

Or, F = Shearing strength × 2$\pi $r × t

Or, F = 2.76 ×10^{8 }× 2$\pi $× 0.5 × 10^{–2} × 5 × 10^{–3}

$\therefore $ F = 43353.98 N

*13. A copper wire and a steel wire of the same cross sectional area and of length 1 m and 2 m respectively are connected end to end. A force is applied, which stretches their combined length by 1 cm. Find how much each wire is elongated. [Y*_{copper}* = 1.2**×**10*^{11}* N/m*^{2 }*and Y*_{steel}* = 2**×**10*^{11}* N/m*^{2}*]*

Solution:

Here,

Length of copper wire, *l*_{cu }= 1 m

Length of steel wire, *l*_{cu }= 2 m Total elongation, e_{cu }+ e_{s }= 1 cm = 1×10^{–2 }m……(i)

(i) Elongation in copper wire, e_{cu }= ?

(ii) Elongation in steel wire, e_{s }= ?

For copper, Young’s modulus of elasticity,

Y_{cu} = $\frac{F\,\,{{l}_{cu}}}{{{e}_{cu}}A}$

e_{cu} = $\frac{F\,\,{{l}_{cu}}}{{{Y}_{cu\,\,}}A}$….(ii)

For steel, Young’s modulus of elasticity,

Y_{s} = $\frac{F{{l}_{s}}}{{{e}_{s}}A}$

e_{s} = $\frac{F\,{{l}_{S}}}{{{Y}_{S}}A}$….(iii)

Dividing equation (ii) by (iii)

Or, $\frac{{{e}_{cu}}}{{{e}_{s}}}$= $\frac{{{l}_{cu}}}{{{Y}_{cu}}}$×$\frac{{{Y}_{S}}}{{{l}_{S}}}$

Or, $\frac{1\times {{10}^{-2}}-{{e}_{S}}}{{{e}_{S}}}$= $\frac{1}{1.2\times {{10}^{11}}}$× $\frac{2\times {{10}^{11}}}{2}$

Or, $\frac{1\times {{10}^{-2}}-{{e}_{S}}}{{{e}_{S}}}$= $\frac{5}{6}$

Or, 6×1×10^{–2 }– 6 e_{s}^{ }= 5 e_{s}

Or, e_{s }= $\frac{6\times 1\times {{10}^{-2}}}{11}$

∴ Elongation in steel wire, e_{s }= 5.45×10^{–3 }m.

and elongation in copper wire, e_{cu } _{= }1×10^{–2 }– 5.45×10^{–3} = 4.54 ×10^{–3 }m

*14. A rubber cord of a catapult has a cross-sectional area 1.0 mm*^{2}* and total un-stretched length 10 cm. It is stretched to 12 cm and then released to project a missile of mass 5.0 g. Calculate the velocity of projection. **[Y*_{rubber}* = 5**×**10*^{8}* N/m*^{2}*]*

Solution:

Area of cross-section, A = 1 mm^{2}

A = (1×10^{-3})^{2} m^{2} = 1×10^{-6} m^{2}

Un-stretched (original) length, *l*_{1} = 10 cm = 10 × 10^{-2 }m

Stretched (final) length,* l*_{2} = 12 cm = 12 × 10^{-2 }m

Elongation, e = *l*_{2} – *l*_{1}

e = 2cm

e = 2×10^{-2} m

Mass of missile, m = 5g

m = 5×10^{-3} kg

Velocity projection, v = ?

Y_{rubber} = 5×10^{8} N/m^{2}

We have,

Young’s modulus of elasticity,

Y = $\frac{Fl}{eA}$

F = $\frac{YAe}{l}$

F = $\frac{5\times {{10}^{8}}\times 2\times {{10}^{-2}}\times 1\times {{10}^{-6}}}{10\times {{10}^{-2}}}$

F = 100 N

Then,

Elastic energy stored in a stretched rubber

E = $\frac{1}{2}$ .F .e

E = $\frac{1}{2}$ × 100 × 2 × 10^{-2}

E = 1 J

According to work energy theorem,

Elastic potential energy, E = K.E

Or, K.E = $\frac{1}{2}$ .m . v^{2}

Or, 1 = $\frac{1}{2}$ × 5×10^{-3} v^{2}

Or, v = $\sqrt{\frac{2}{5\times {{10}^{-3}}}}$

$\therefore $ v = 20 m/s

Hildegarde CyrnekI really love your site.. Pleasant colors & theme. Did you build this site yourself? Please reply back as I’m planning to create my own personal blog and would love to know where you got this from or exactly what the theme is named. Kudos!

Urmila YadavIt’s really helpful site 💙

saddu pandeywauuu
